Honda RC110

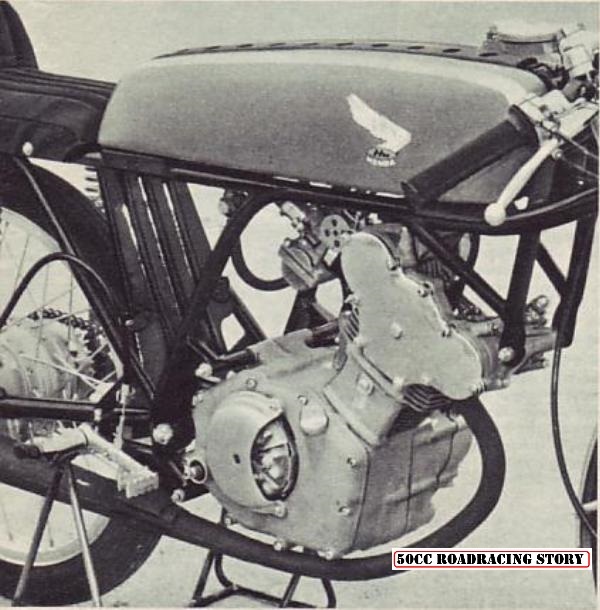

61 Honda engine - 4 stroke DOHC single

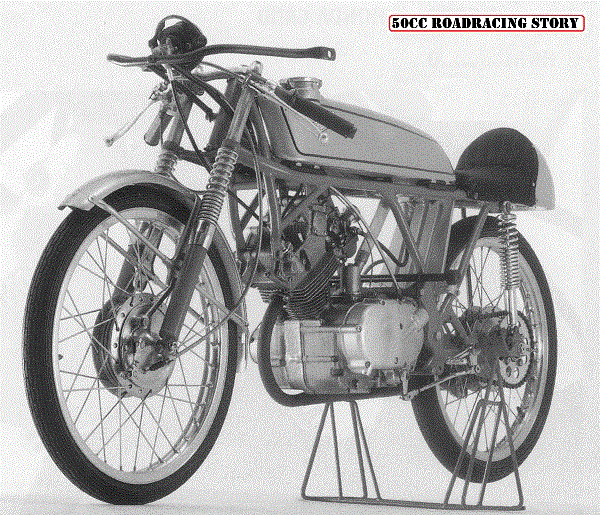

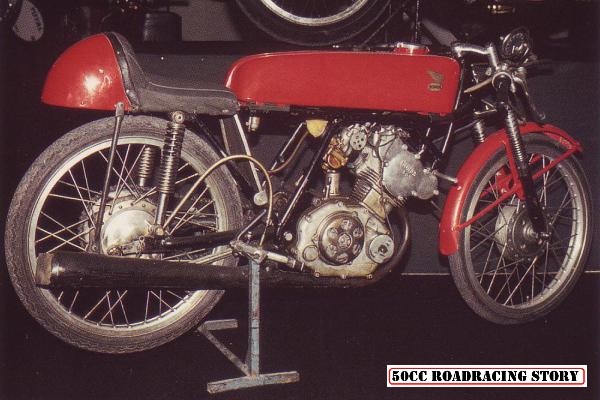

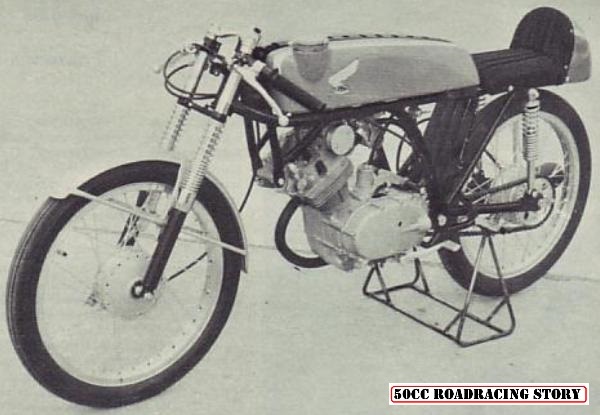

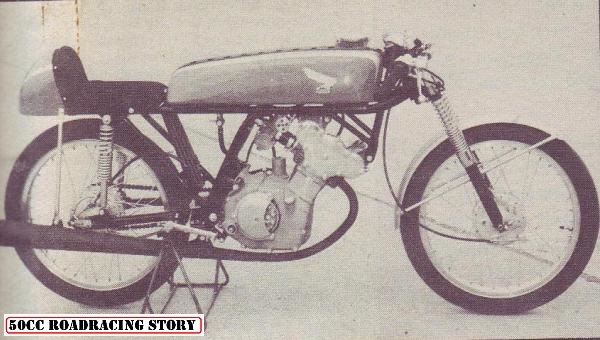

61 Honda CR110 production racer RC110 right

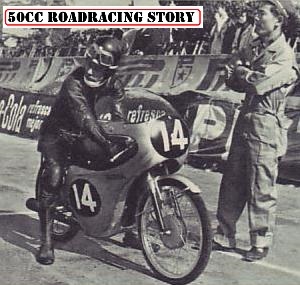

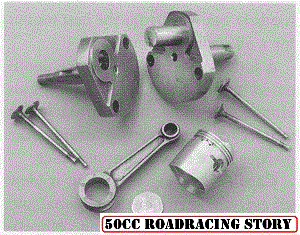

CR110 CR110 crank 62 Barcelona - Taveri Honda RC110

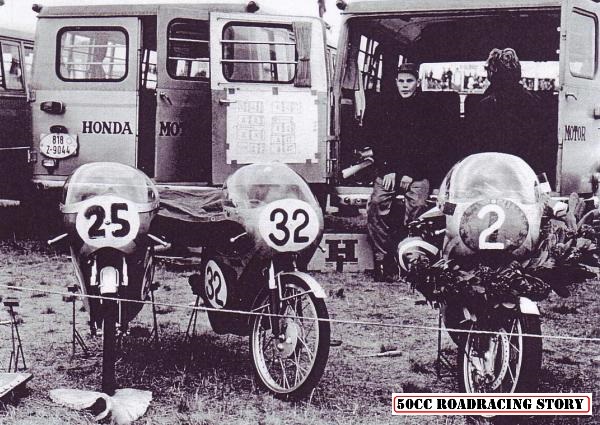

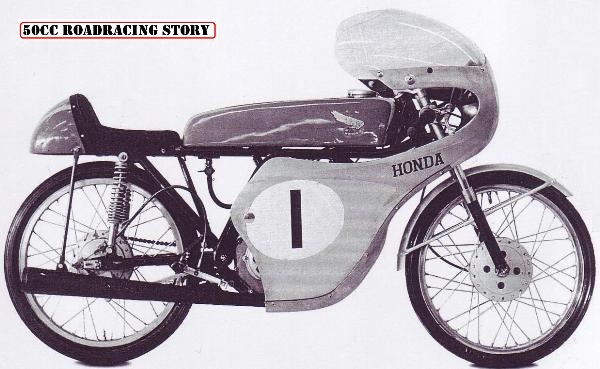

62 RC111 - minor changes mid- season 62 Assen - RC111 racers in the pit

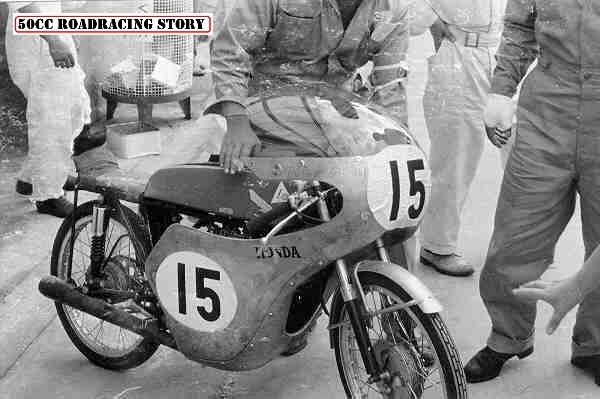

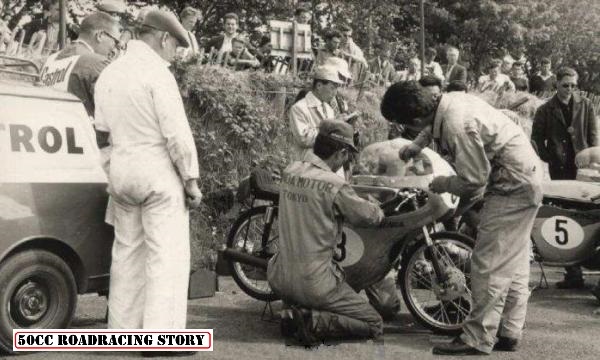

Honda team - RC111 RC111 in Japan

Honda RC112
Last race of 62 - RC112 twin

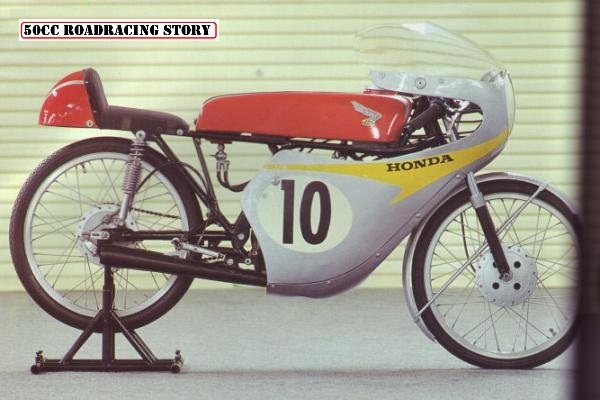

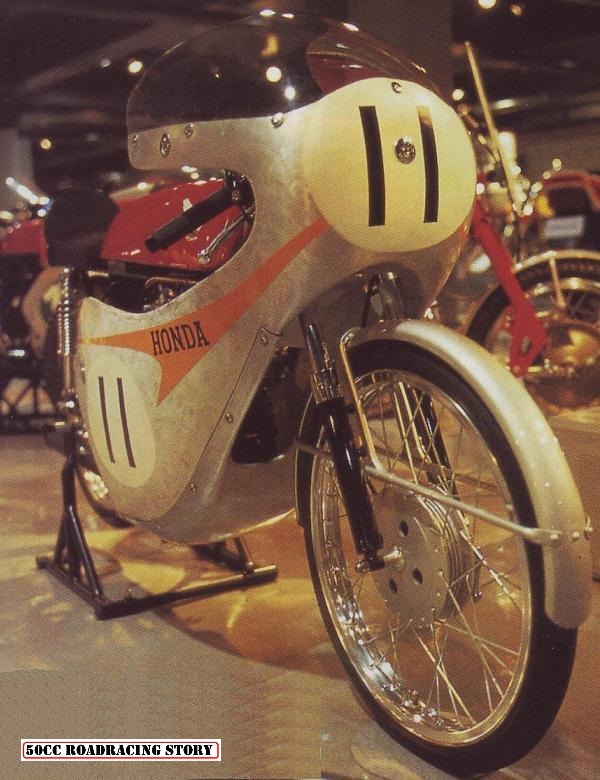

RC112 on display RC112 engine

Tommy Robb on the RC112:

"I must admit the 50cc Honda Twin (on which I won the first "All
Japan GP") was my favourite 50cc bike, it was considerably better
than the earlier single. Very smooth, excellent power and the handling
was superb. It was also an excellent riding position and didn't feel
as cramped as the old single.
Of course the bike I rode was very much the prototype and this kept
improving after I then left Honda and became better and better with
every race, as proved when it eventually won the World Championship
from Suzuki after many years of trying.
I was very disappointed that after that first win at Suzuka that my
contract, and that of Takahashi, was withdrawn for the 1964 season
when Ralph Bryans went on to win the Championship".

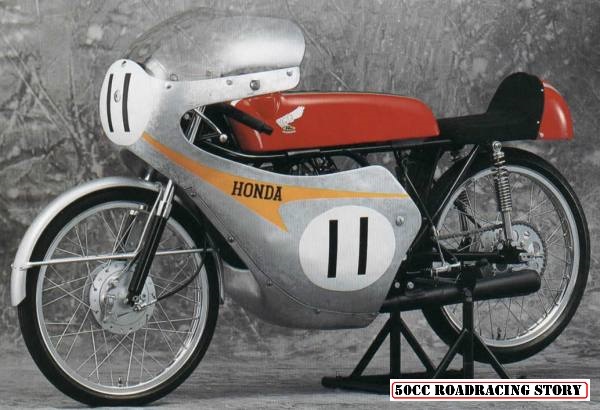

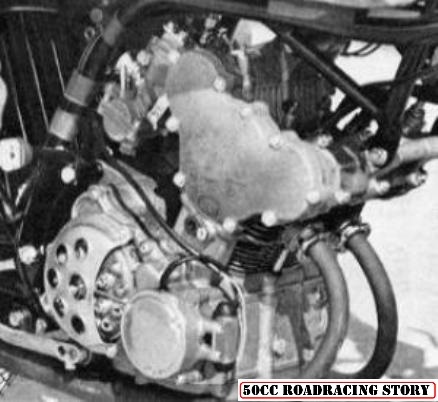

Tommy Robb 2012. RC112 - 2 valve twin

Another RC112 - the Taveri bike. Taveri racing in Japan on the Honda RC112 tvo- valve twin.

Suzuka 1962 - Robb overtakes Anderson and wins the race.

Honda RC113

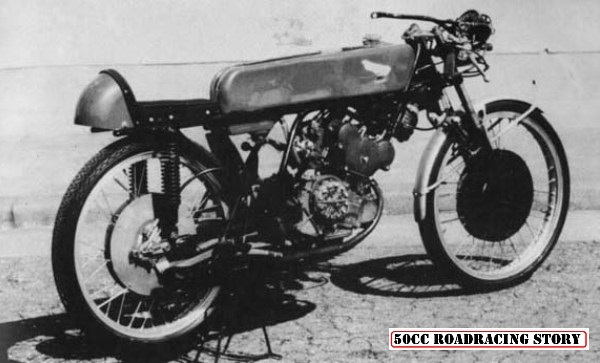

RC113 - New 4valve twin for 63

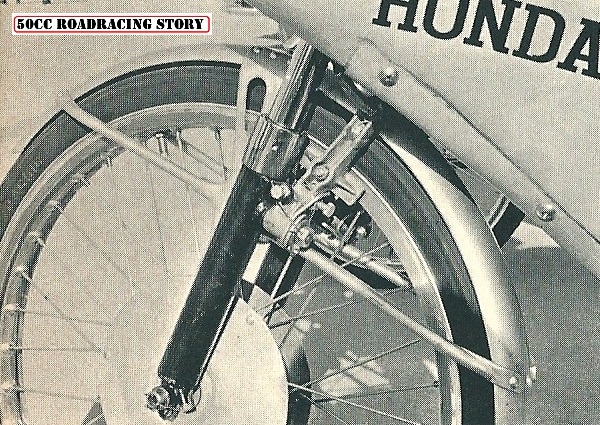

Honda rim brake. "The RC113 Twin 50cc was a beautiful little bike and the "push bike"
rim block brakes actually worked exceptionally well, although it took a
lot of bravery when coming into an acute hairpin from 115mph to apply
a lot of pressure and hope that these little brake blocks would perform
as they should.....but they did."
Tommy Robb 2012

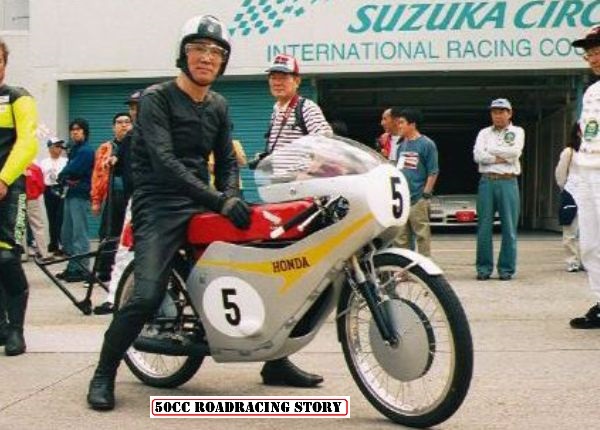

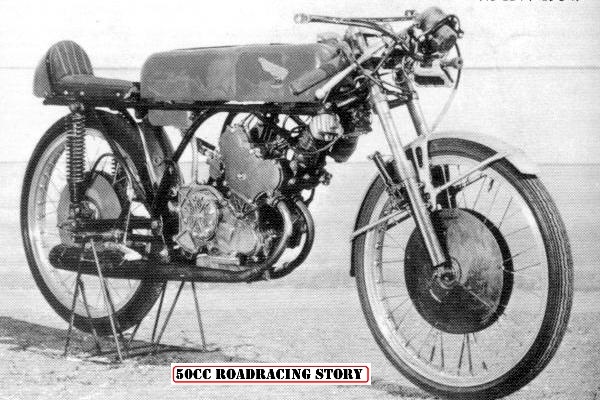

RC113 twin RC113 - rider Taniguchi

RC113

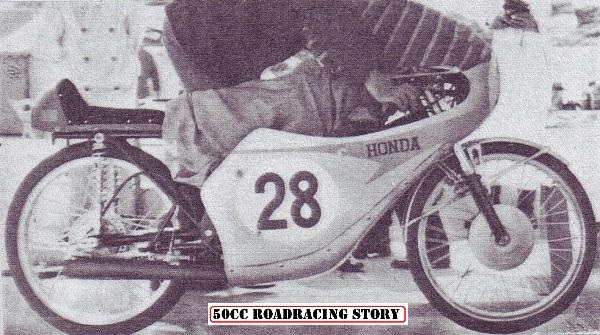

RC113 RC113 - Takahashi´s bike

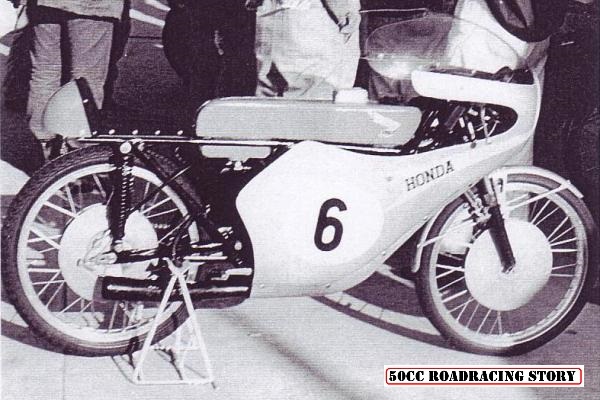

Honda RC114

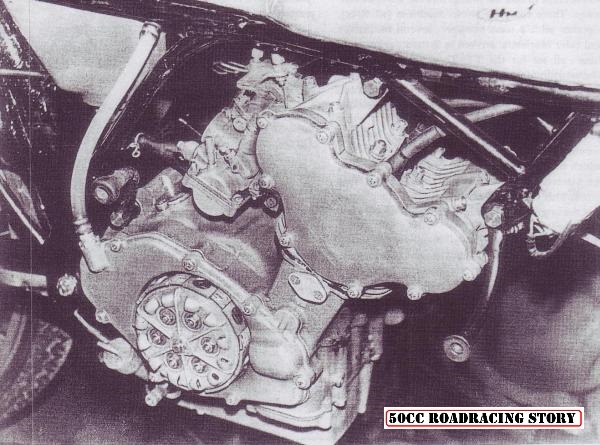

RC114 RC114 engine

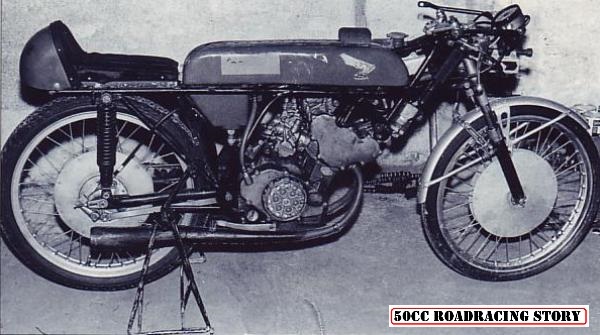

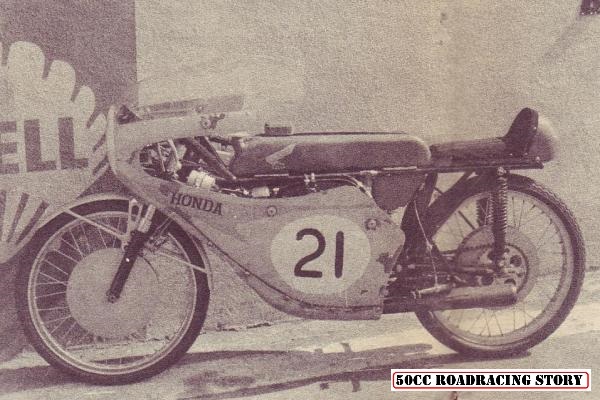

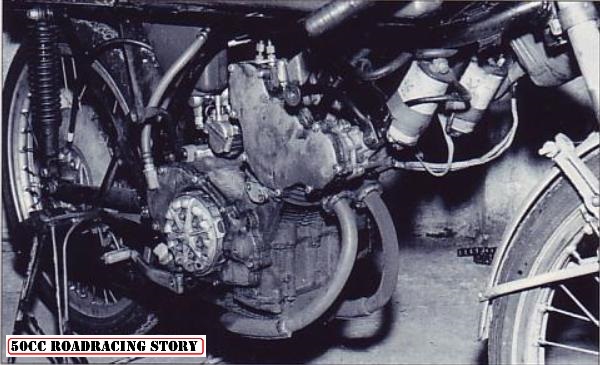

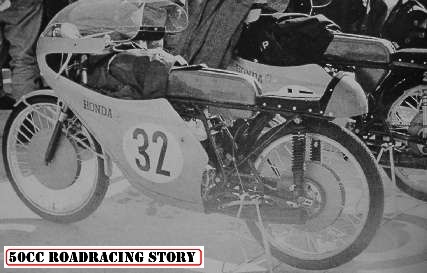

Honda RC114 engine 64 Japan Honda 50 twin RC114

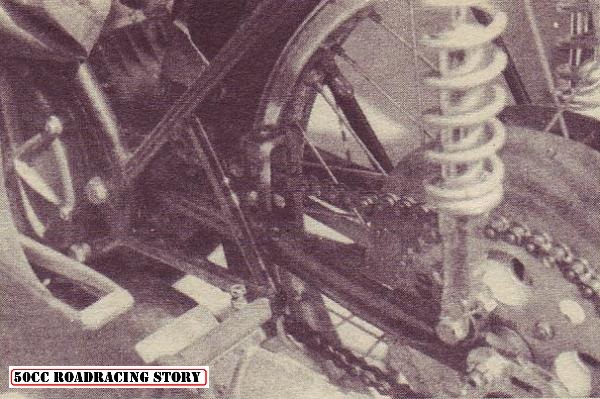

RC114 RC114 rear

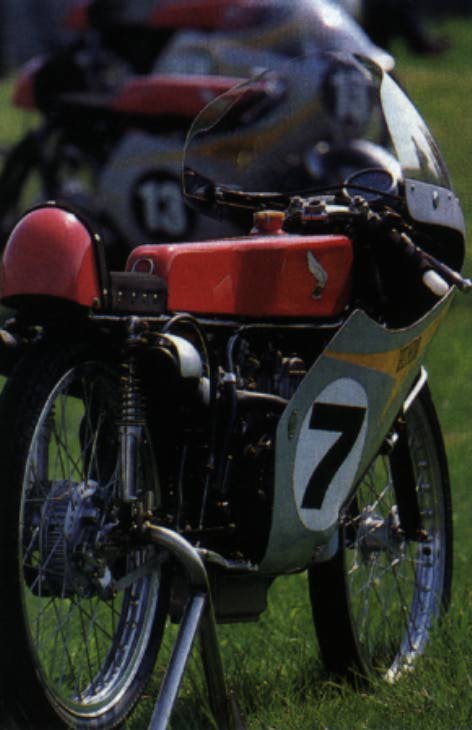

Honda RC115

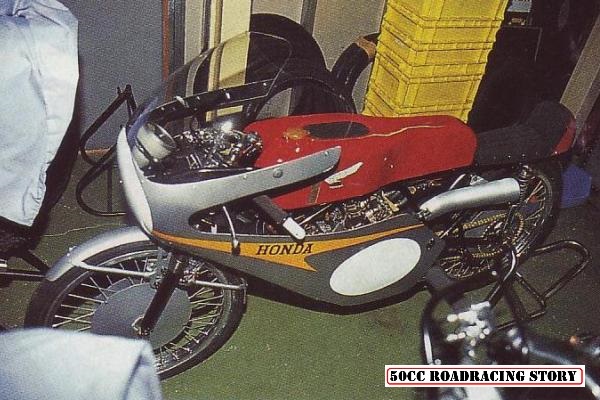

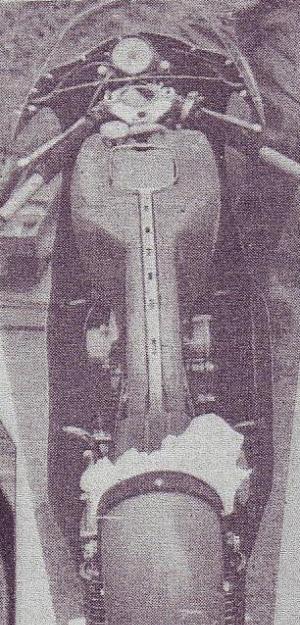

Bryans RC115

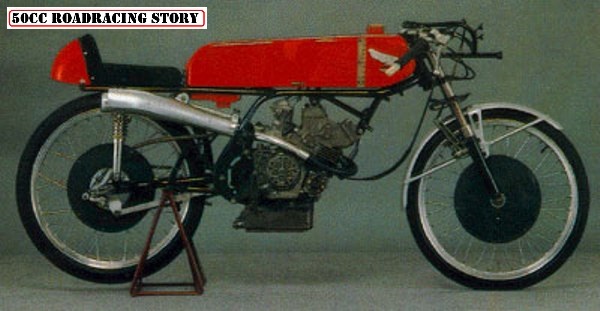

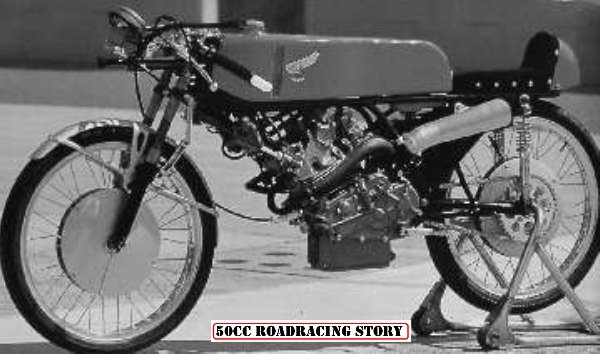

RC115 RC115 left

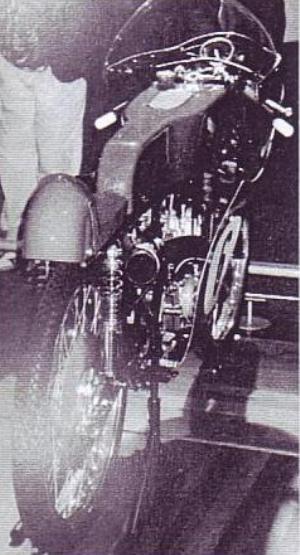

RC115 rider Taniguchi RC115 rear

Ralph Bryans RC115

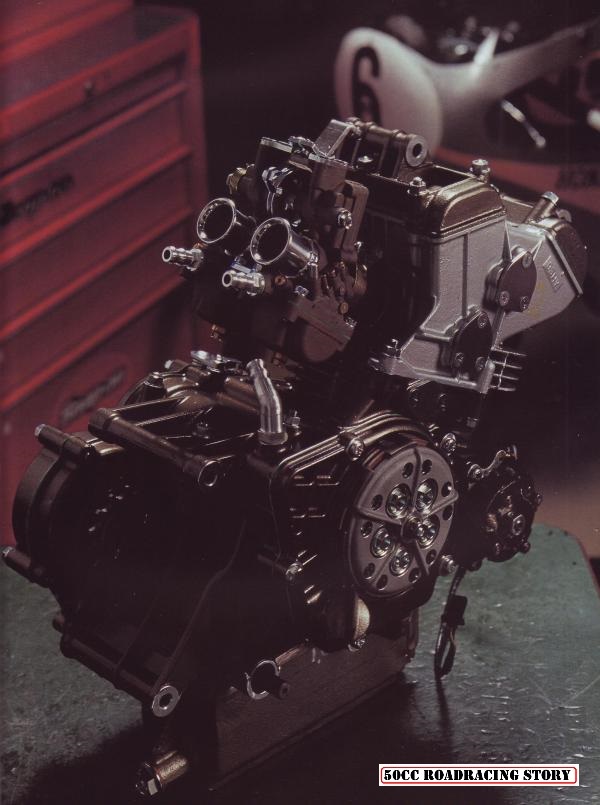

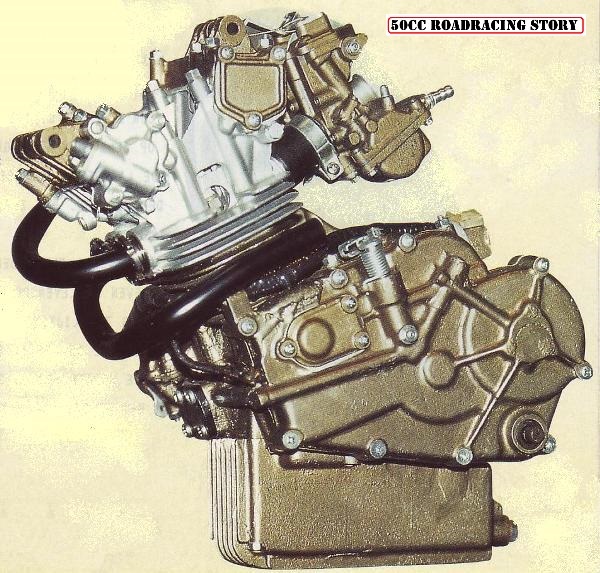

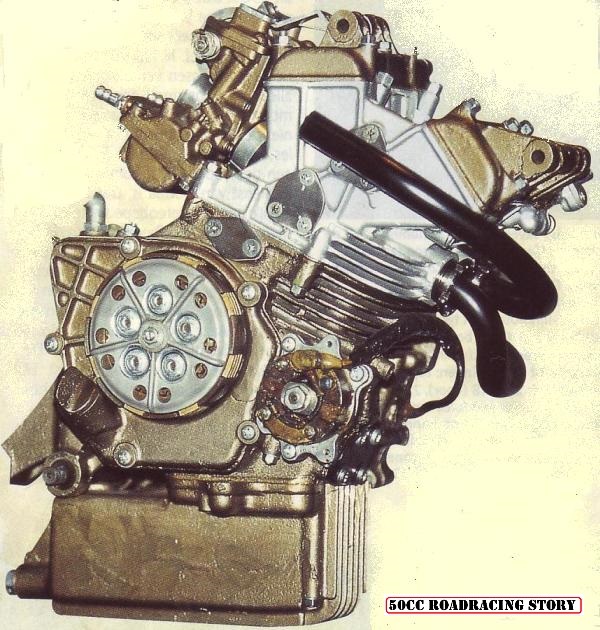

RC115 engine left RC115 engine right

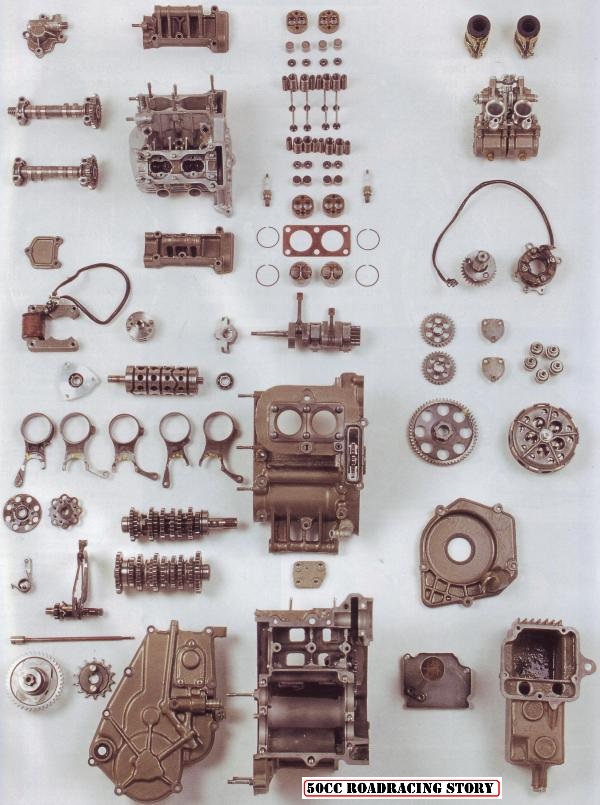

The twin in pieces. 22500rpm engine.

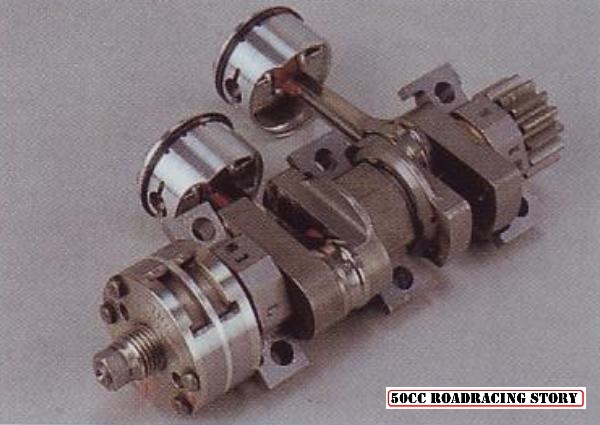

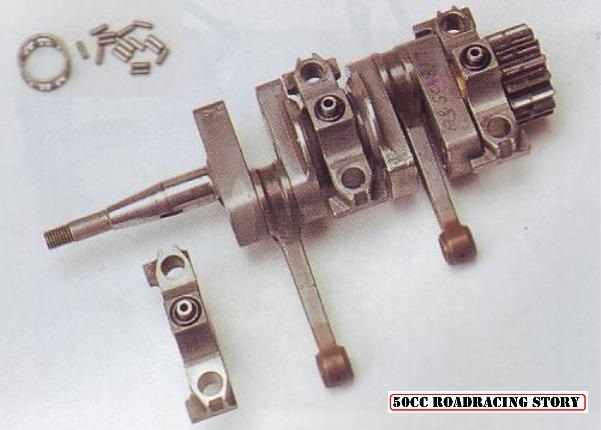

The lightweight crank assembly - stroke Roller bearings

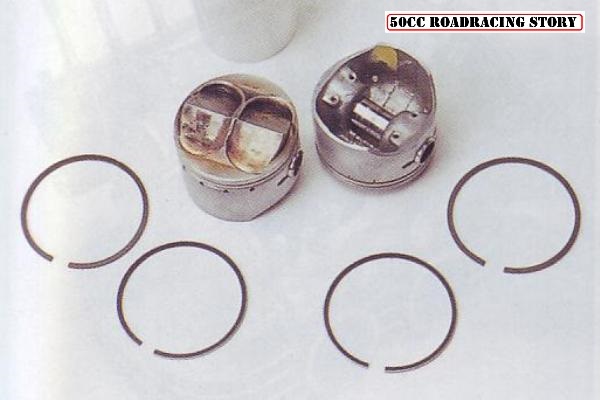

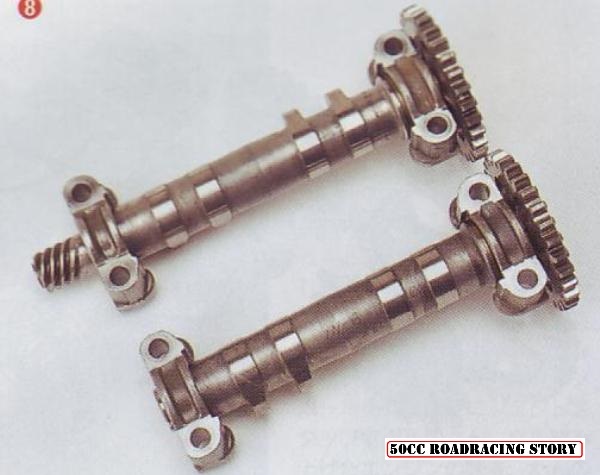

Pistons with no oil- rings. The twin camshafts

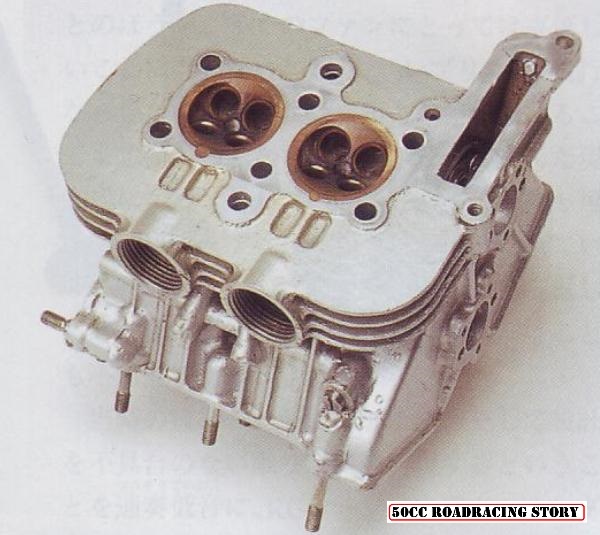

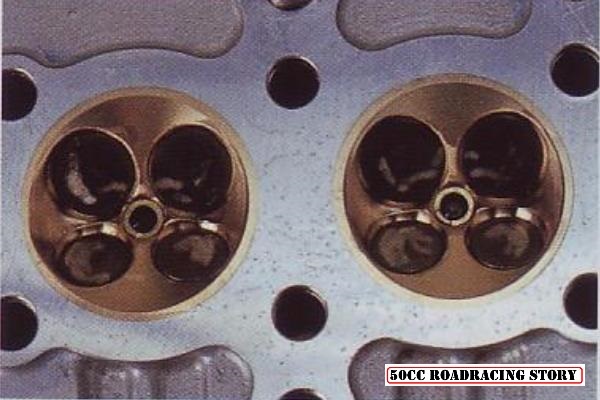

Notice the loose valve guide inserts. 8 valve head.

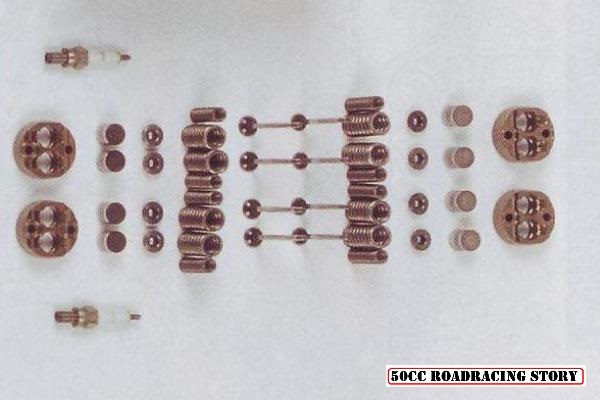

The modular valve guides with double springs. Ordinary and common these days - 4 valve heads from 1965.

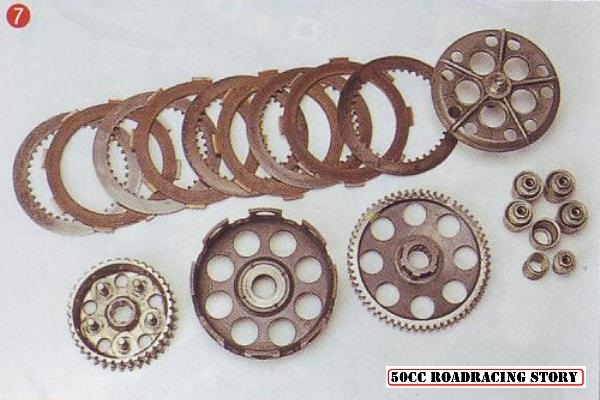

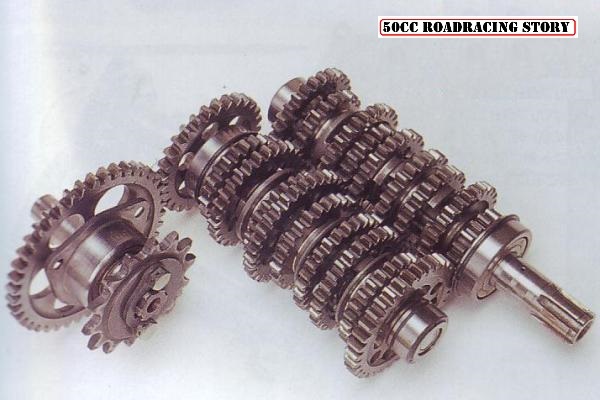

The plate dry clutch. 9- speed transmission

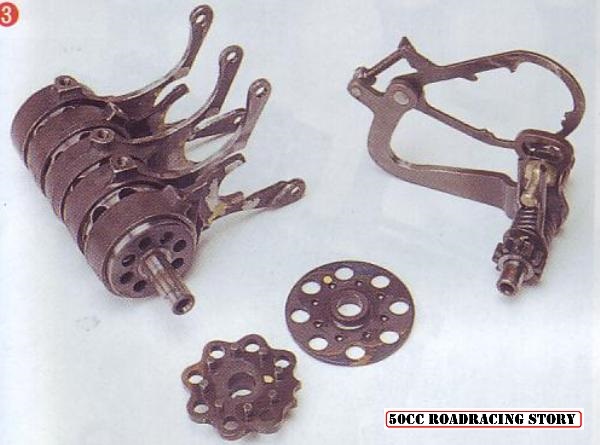

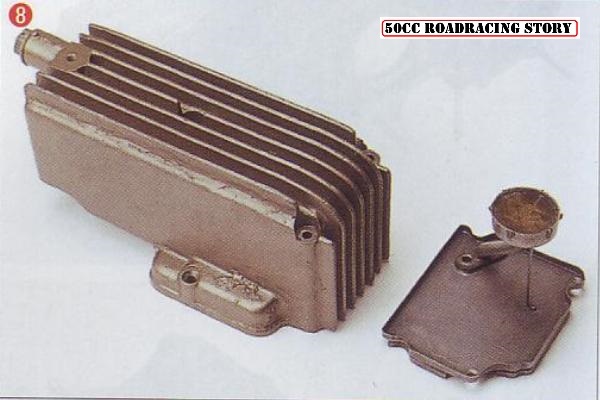

The RC115/ 116 shiftdrum and forks. The ever important oil sump - heavily finned!

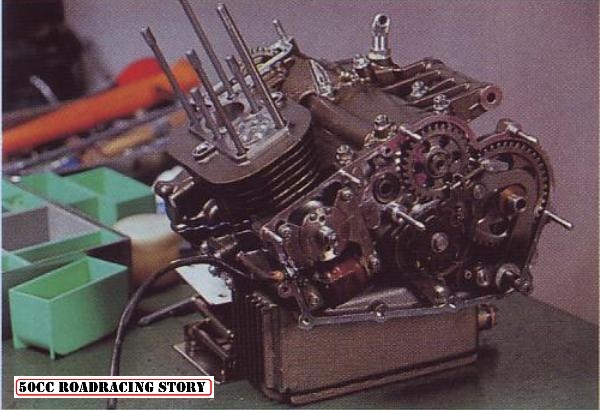

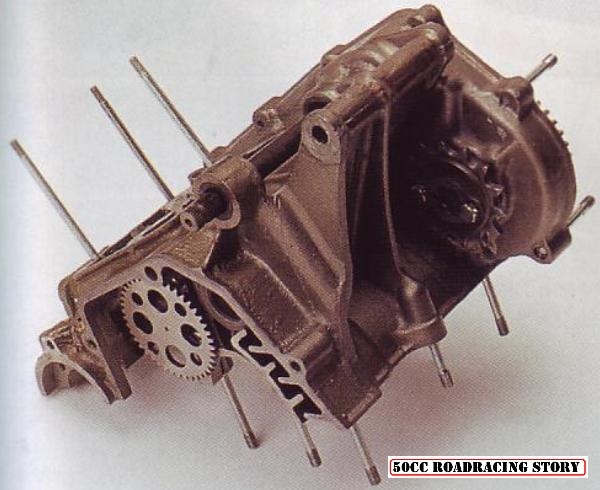

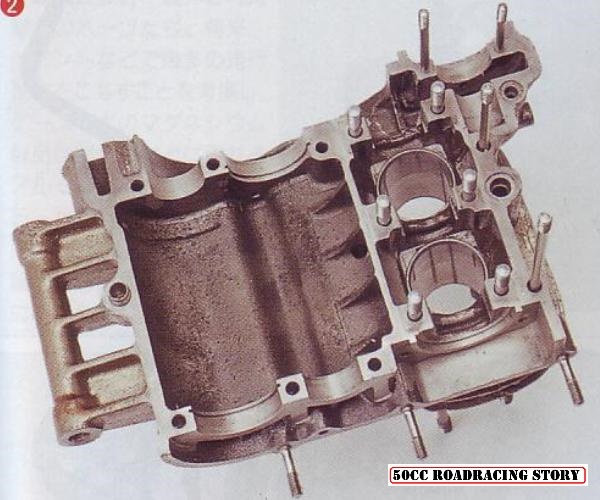

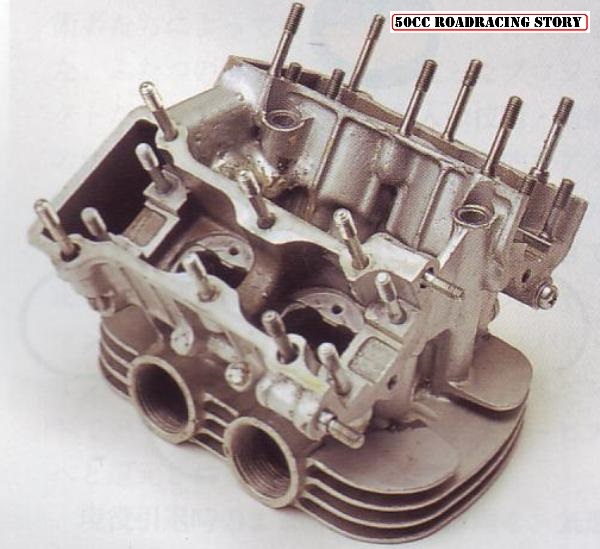

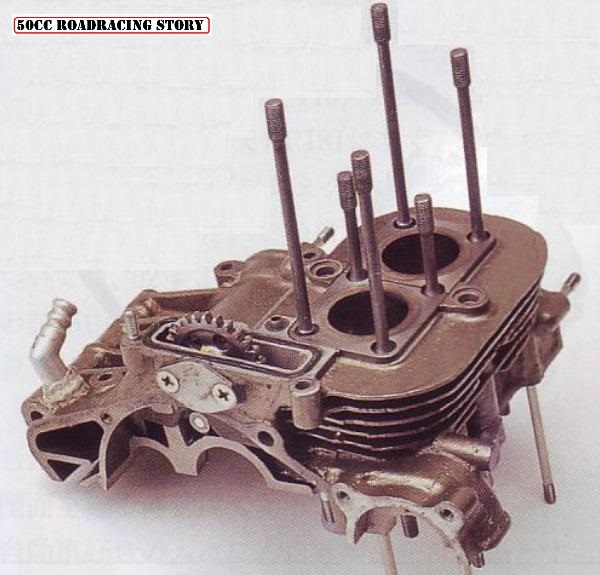

Horizontal divided crankcases - upper part with cast- in barrels.

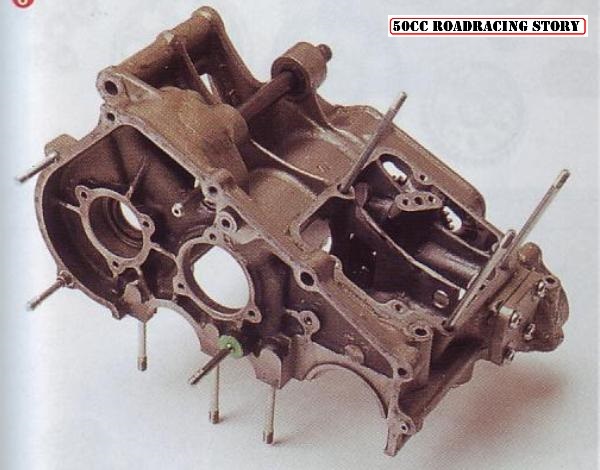

Lower part

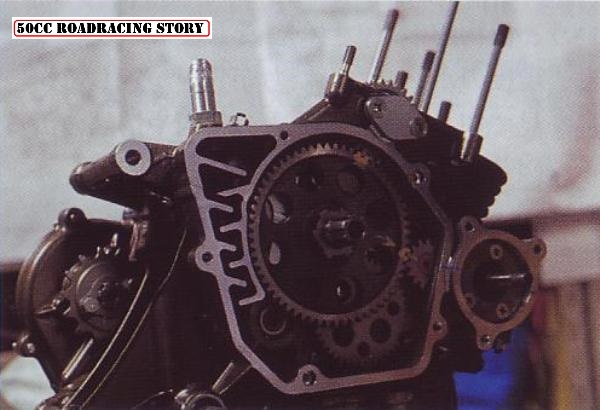

Notice labyrinth - seperating air from oil in this 20.000RPM engine. Left cover is hiding the magneto, gearchange, and secondary drive.

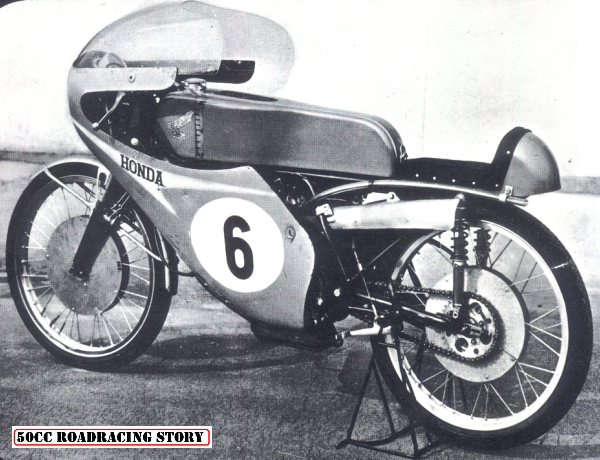

65 Honda RC115 Taveri landing his RC115 after Bray Hill - IoM 1965

Honda RC116

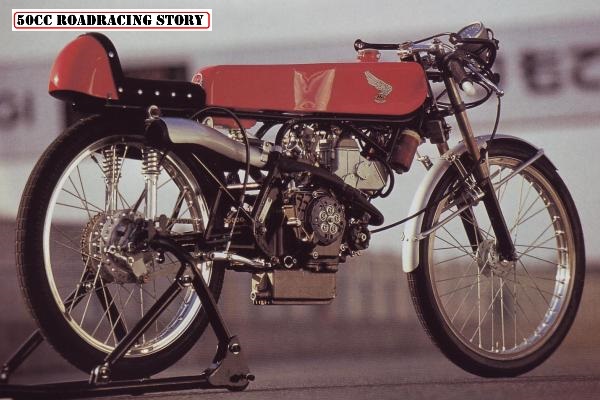

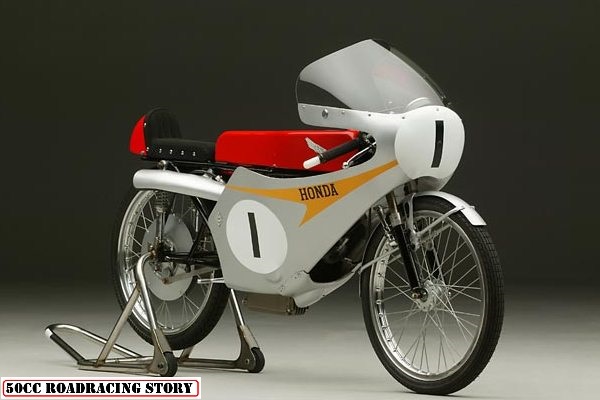

66 RC116 Luigi Taveri riding RC116 right

RC116 left

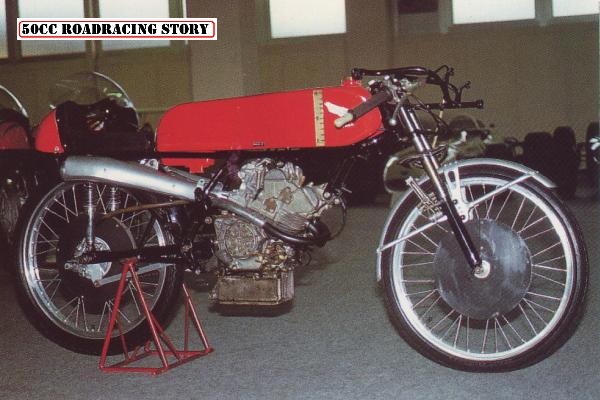

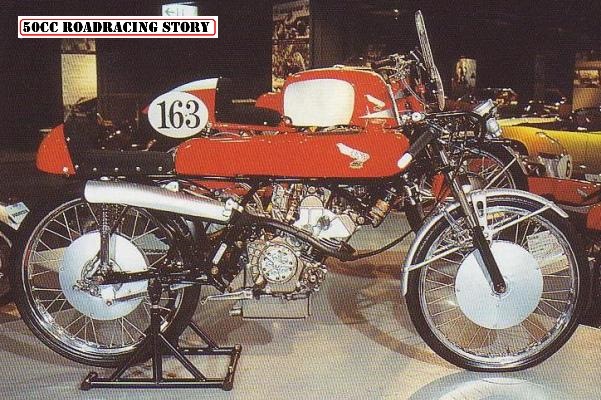

RC116 as can be seen in The Honda Collection Hall.

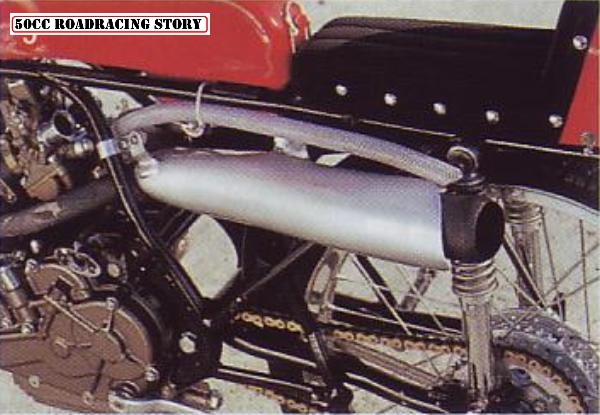

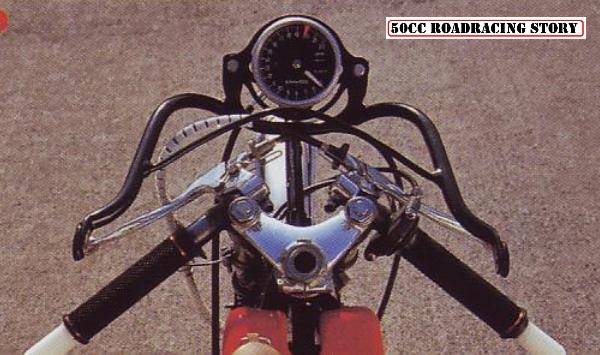

RC116 controls. Aluminium exhaust covers - held by aluminium straps - light!

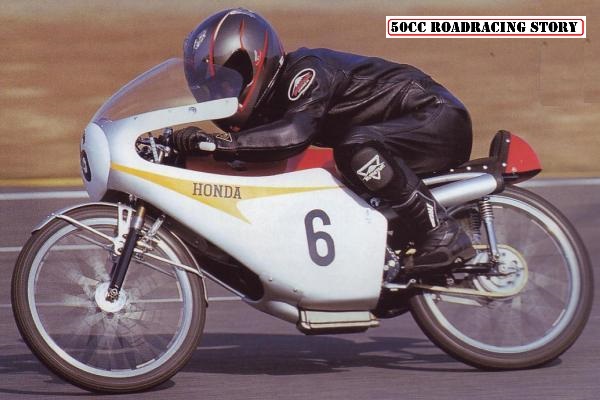

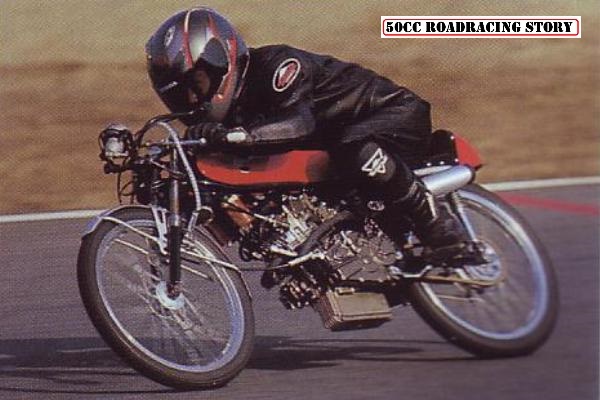

Testing the rebuild RC116.

RC116 at the Honda Collection Hall - Go visit!

Honda production racers

The CR110 were available to privateers 1962 through 64 and were used in club racing for many years. Developed by professor Suzuki of Hondas race department, the CR110 came in two batches. The second batch had 8- speeds instead of five, and the points moved from inlet- camshaft to crankshaft.

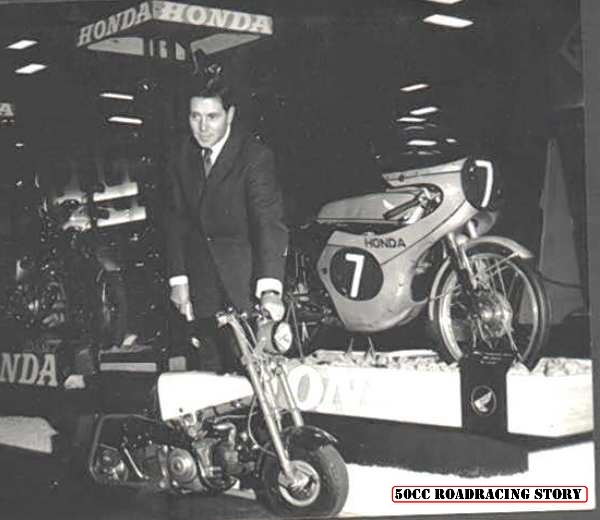

The CR110 were presented at the Earls Court motor show by Geoff Duke

CR110 and Soichiro Honda himself CR110 without fairing

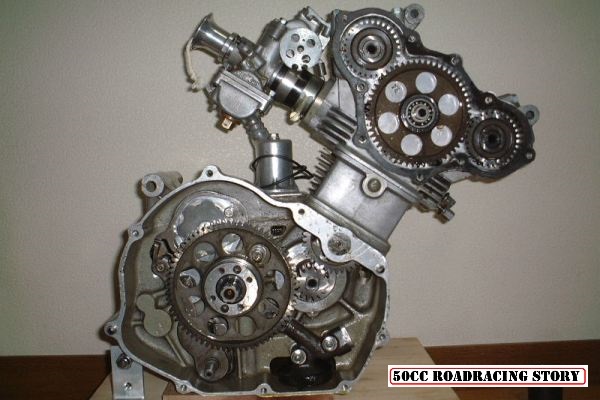

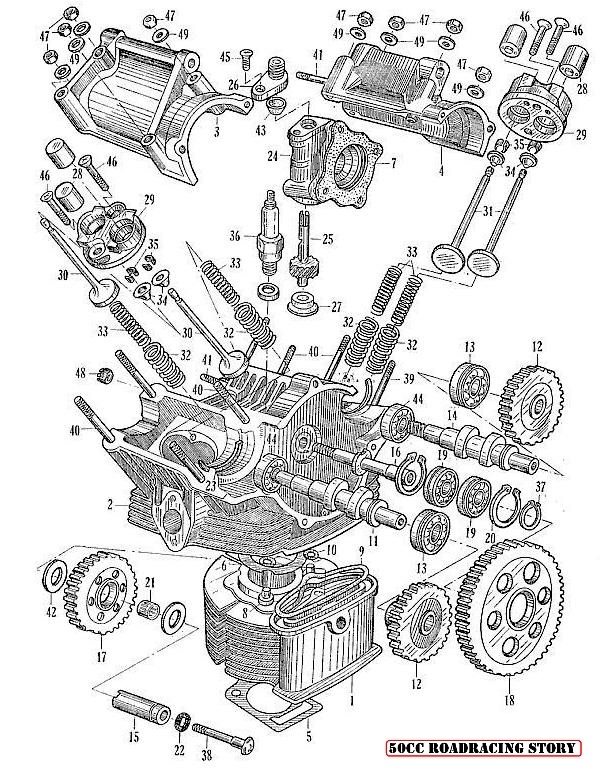

Honda CR110 engine CR110 cylinder and head

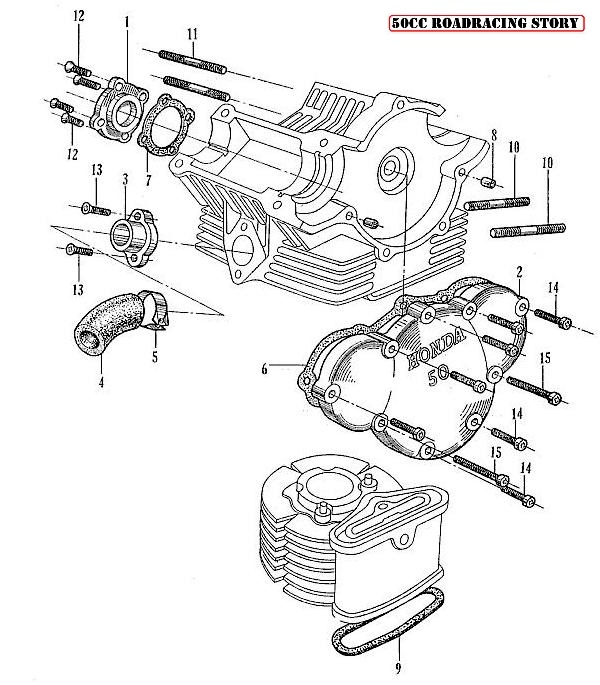

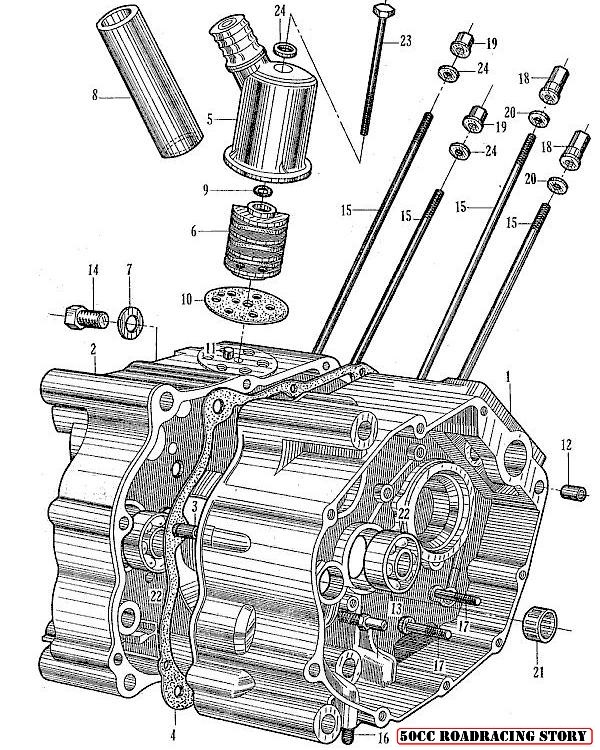

CR110 camcover CR110 crankcase

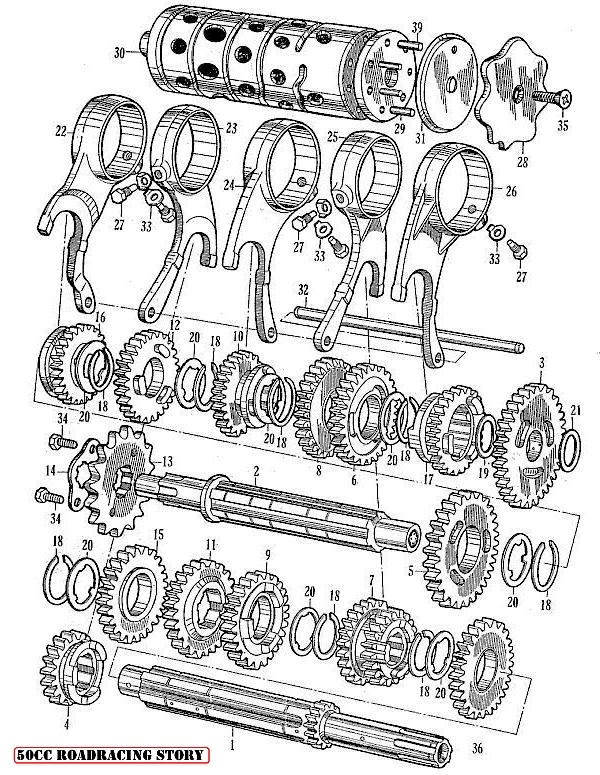

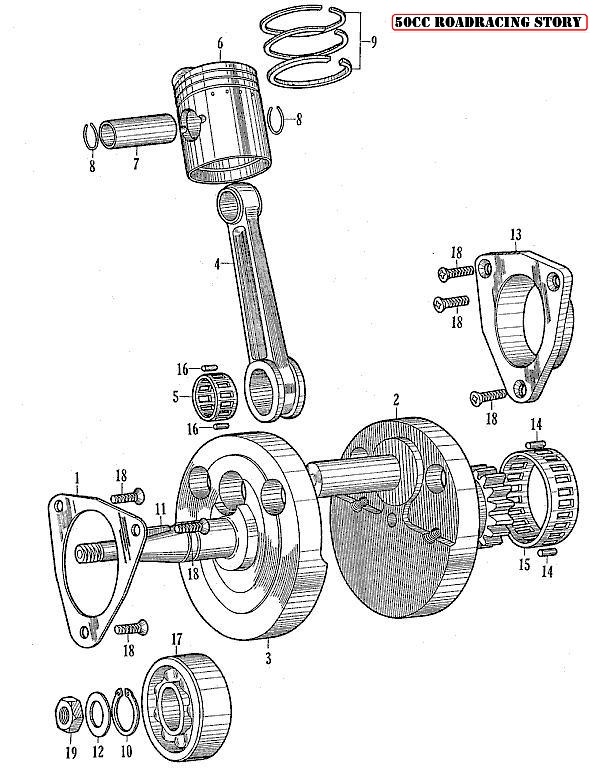

CR110 crankshaft CR110 8- speed transmission

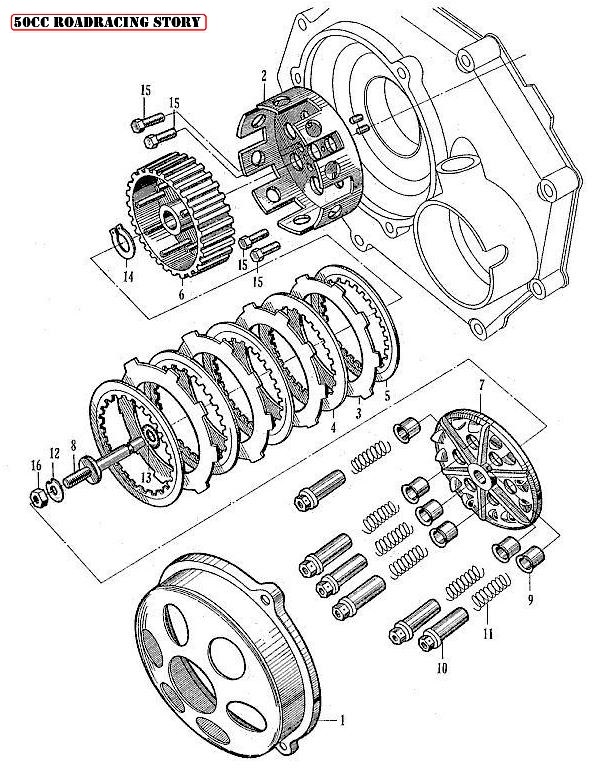

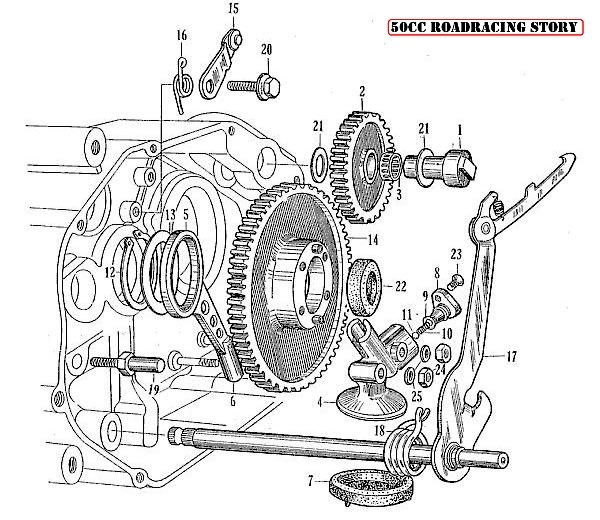

CR110 oilpump CR110 clutch

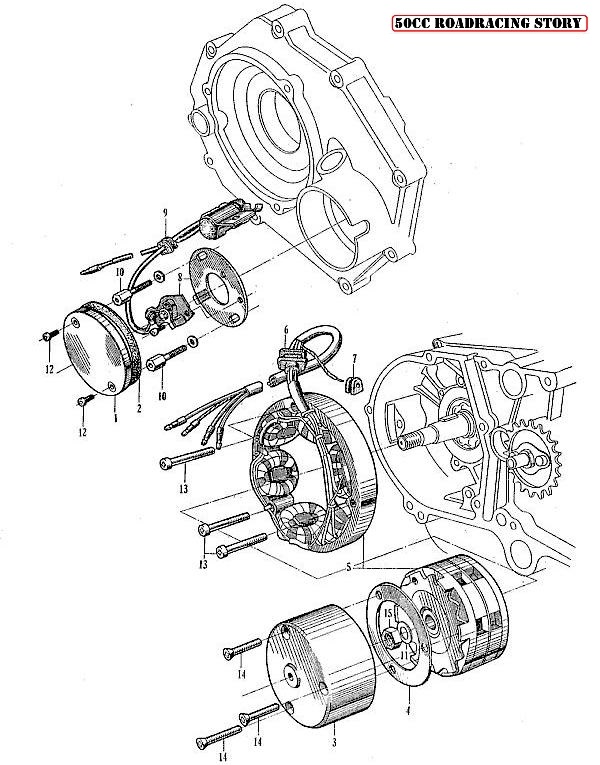

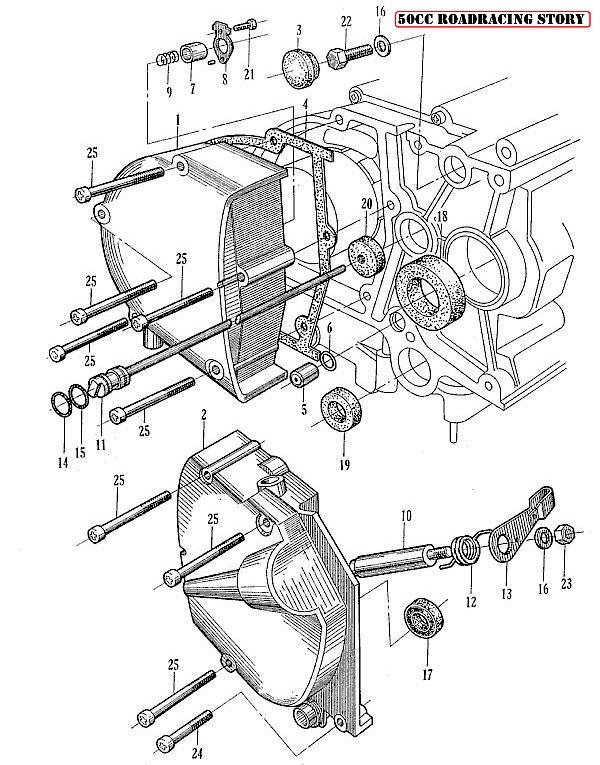

CR110 covers CR110 dynamo

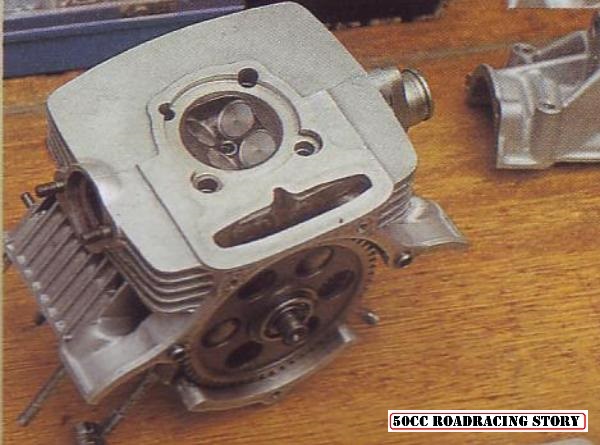

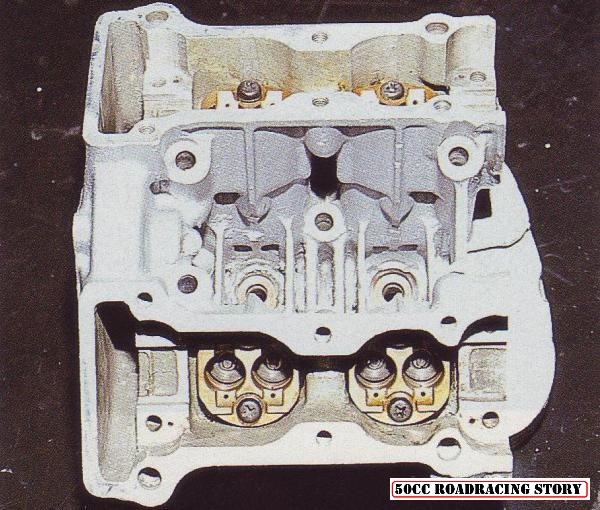

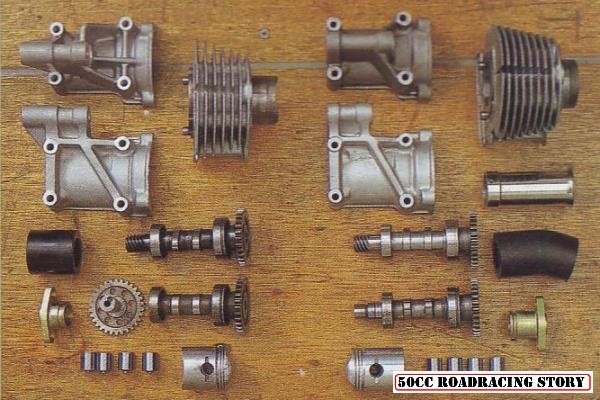

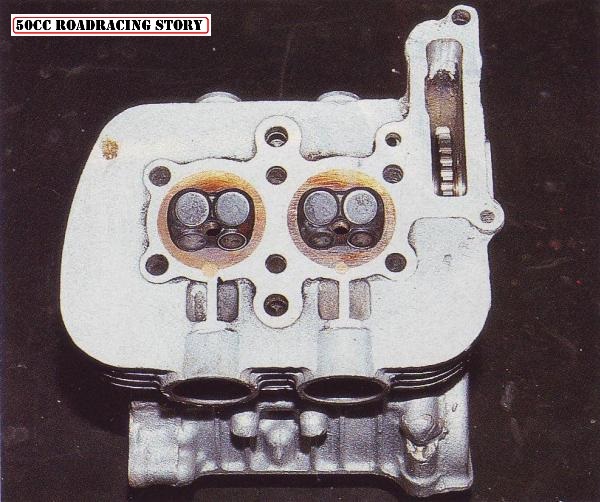

CR110 4 valve head CR110 camshafts from the first and second series.

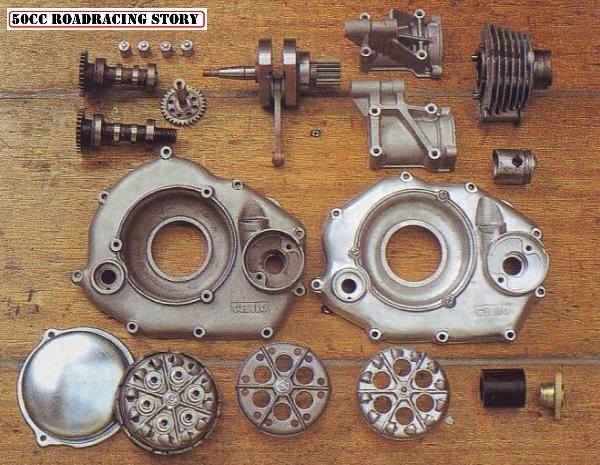

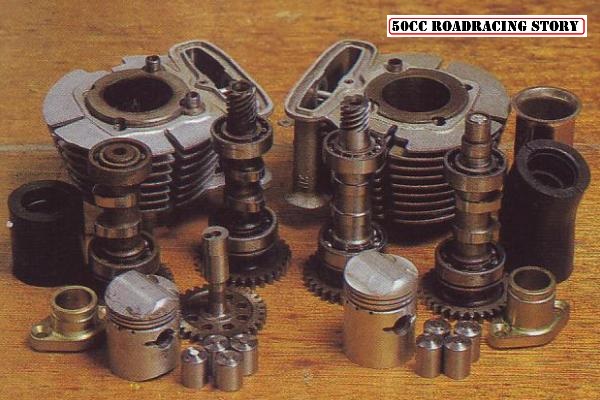

Early and late versions of cilinders and pistons. CR110 clutch evolution.

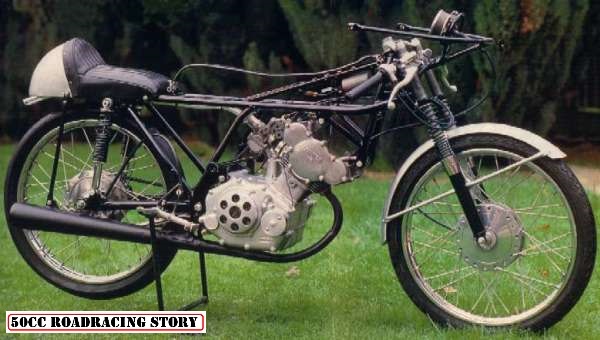

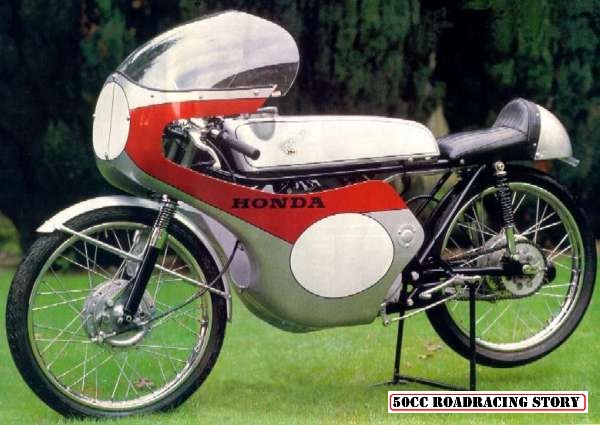

CR110 RC110

Japanese clubracers CR110 early version Derek Minter racing a CR110 during the 62 IOM Ian Plumridge CR110 IOM 63

63 IoM tt Ian plumridge at Bray Hill Othello Buscherini - Honda CR110 63 IoM TT - Who ? Note the fairing !

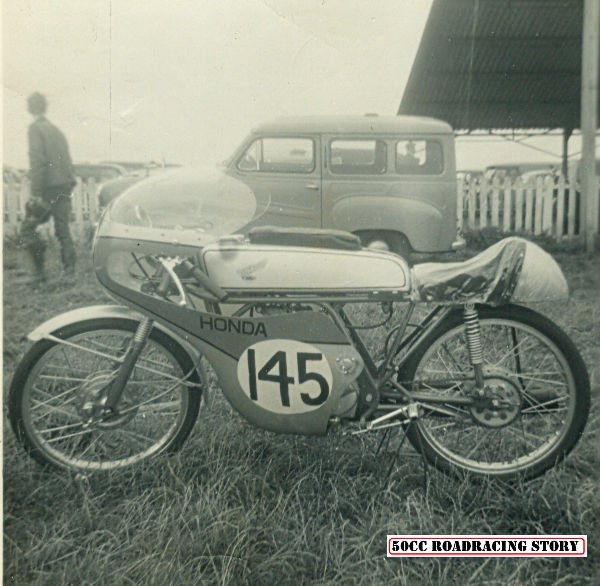

The CR110 raced by Charlie Mates R J Smith racing a CR110 - again with a different fairing.

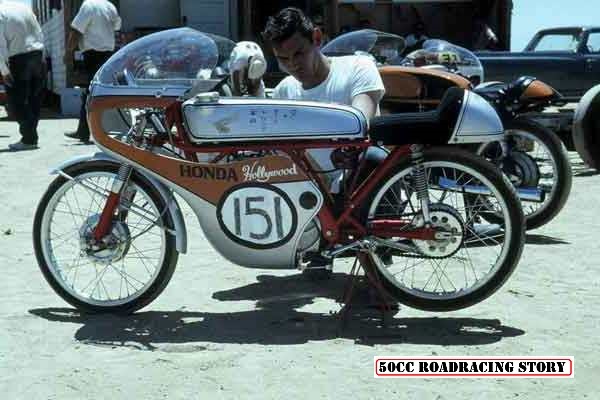

64 Nürburgring - Peter Eser racing a CR110 A CR110 at WillowSprings Raceway 64

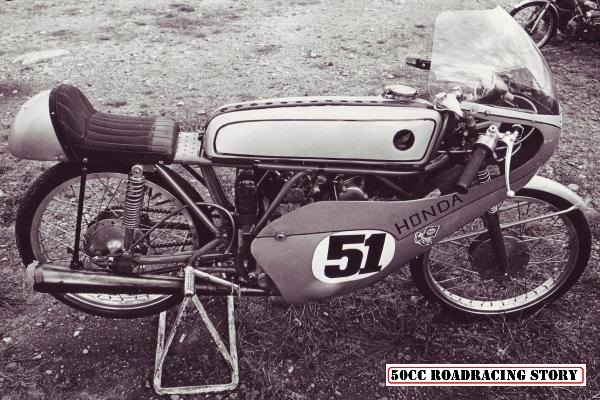

The CR110 of Les Griffiths Jan vanLeeuwen - 65 Dutch champion on CR110

66 San Francisco - Tom Cleghorn racing his CR110 67 Cotati - Bill and Tom Cleghorn - Honda CR110s

Bill Ivy chased by George Ashton - both riding Honda CR110s 68 TT - Arthur Lawn racing his CR110

"I was so impressed with the little Honda that I duly bought it and so
began a reasonable successful period of 50cc racing.
I regret not getting further than the bottom of Bray Hill in the
1968 Isle of Man TT,after being 3rd fastest in practice behind
Barry Smith works Derbi and R.Kunz Kreidler. A valve dropped
in wrecking engine.
The little Honda served me well and I won many events with it
and was mostly placed in the top 3. This included 3rd overall
in the 1969 ACU Star British Championship and 2nd runner up
in the same series of events in 1970."
Arthur Lawn 2007.

Arthur Lawn CR110 pursues Frank Whiteway Suzuki Arthur Lawn drove the CR110 to another victory

David Lock - Honda CR110 CR110 of Brian Kettle

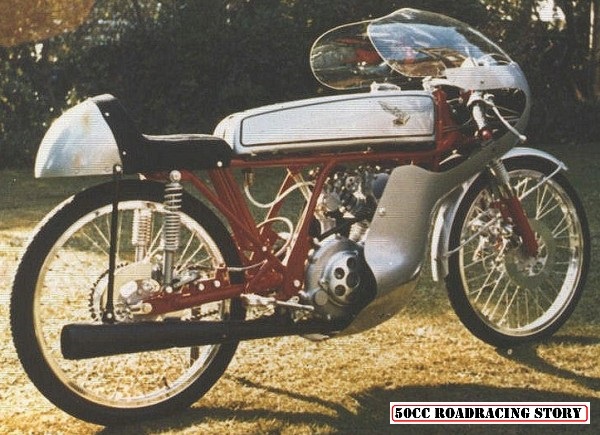

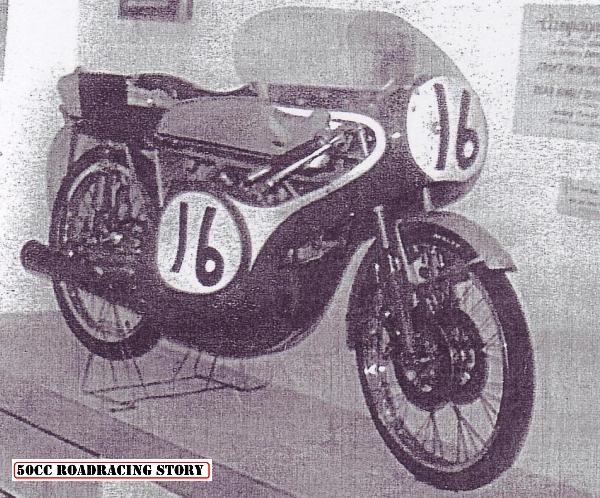

The CR110 of George Ashton outfitted with Campagnolo discbrakes 68 Kent - George Ashton on 3- disc Honda

Nigel Stone racing a CR110

Wire operated Campagnolo discbrakes 68 OCIR - Ed Clement racing a CR110

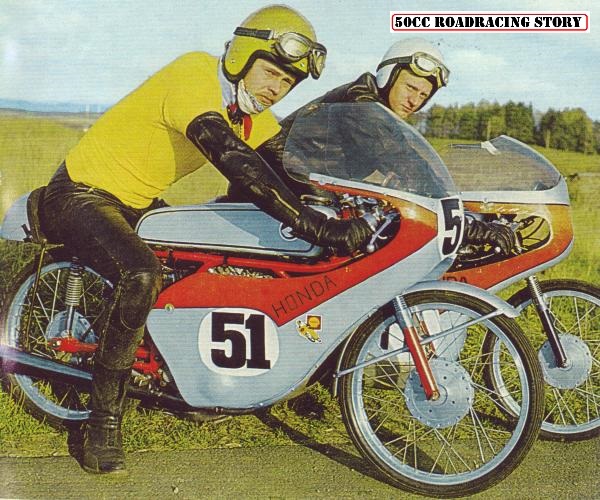

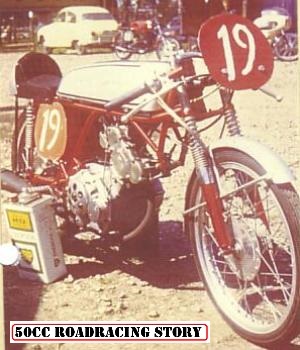

CR110 - driven by Hasse Larsson - Sweden 67 Christer Axelsson and Jens Olsson of Sweden. Christer needs a fresh piston for his CR110, can anybody supply ?

Hughie McIvor - believed to be the last one racing a CR110 in UK

Honda replicas

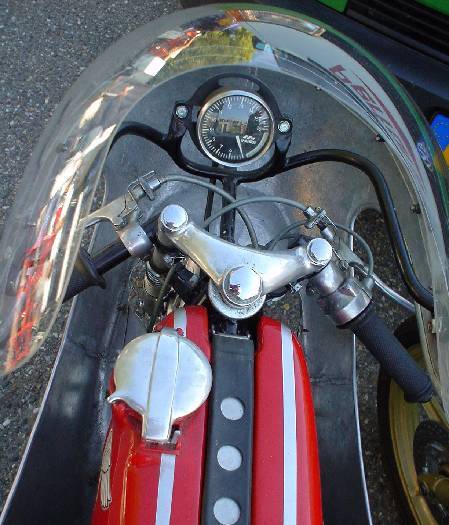

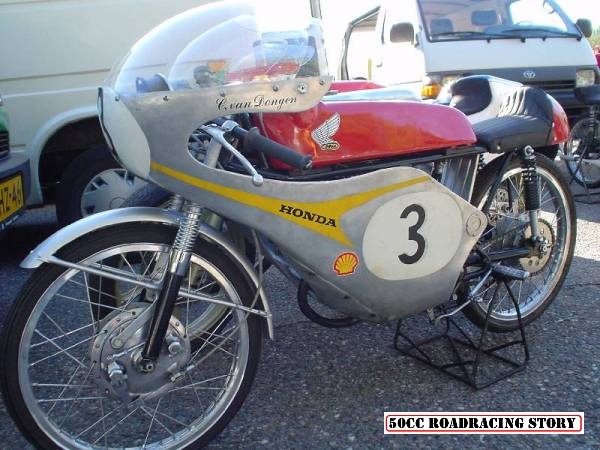

Beautiful CR110 replica made by Cees VanDongen NL VanDongen replica

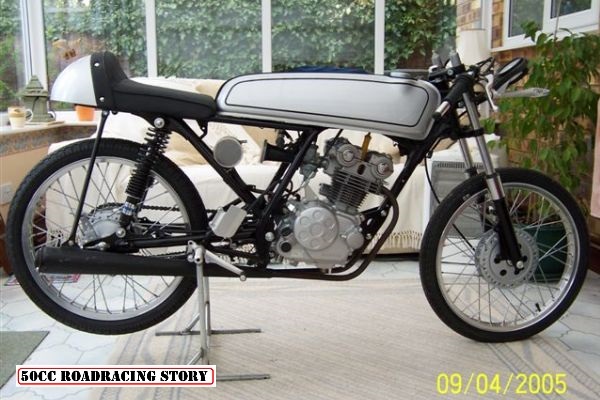

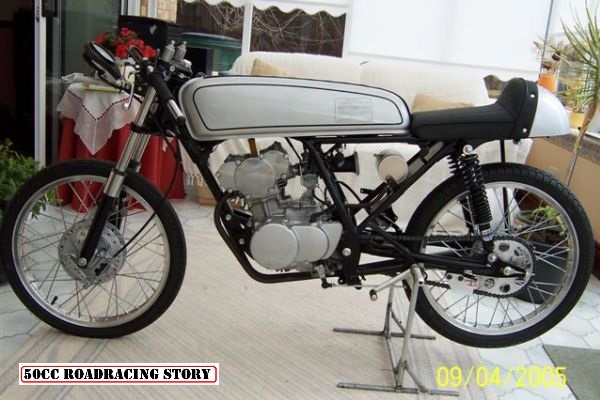

Honda Dream 50r turned CR110 replica by Ron Ponti Ron Ponti CR110 replica

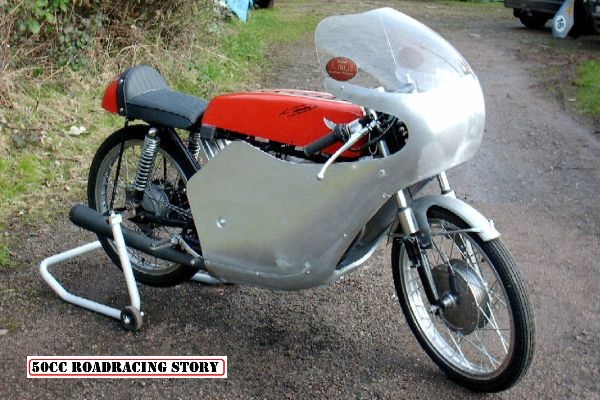

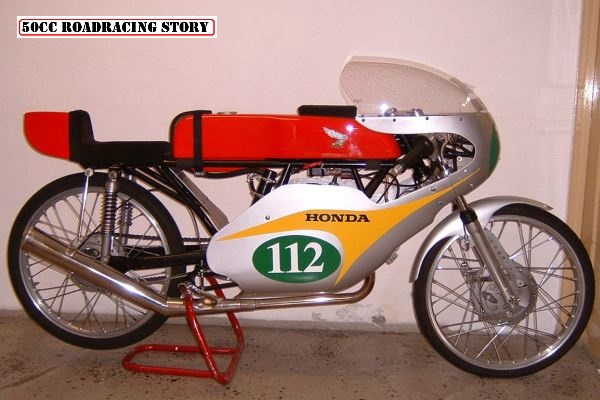

Dream50 turned RC113 replica - raced by Wim Heeroma NL Wim Heeroma Honda replica - refined for the 2009 season!

Honda powered specials

Honda C110 special - driver Hummlerts

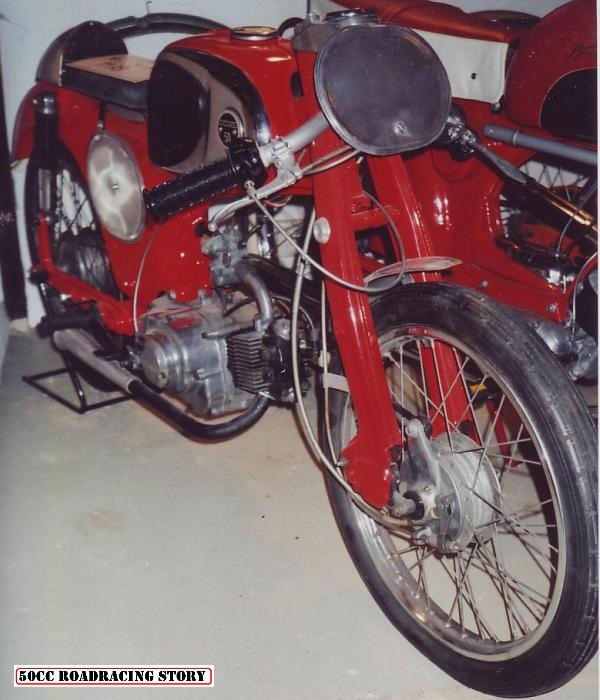

Sweden 1962 - Honda Super Cub - Kenneth Hedlund The Honda 50 Super Cub of Kenneth Hedlund

Bill Ivy racing a Honda 50 Cub

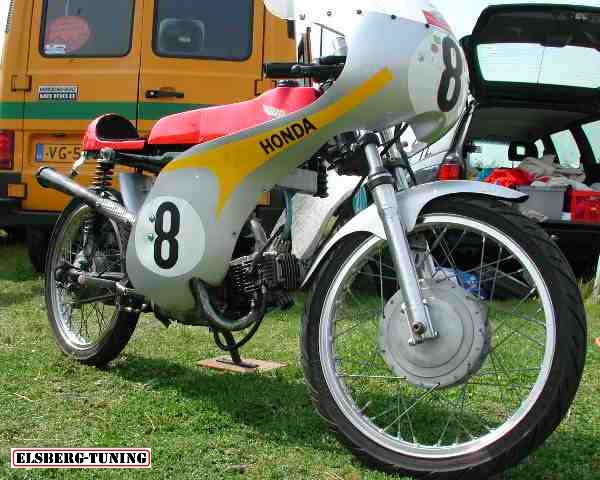

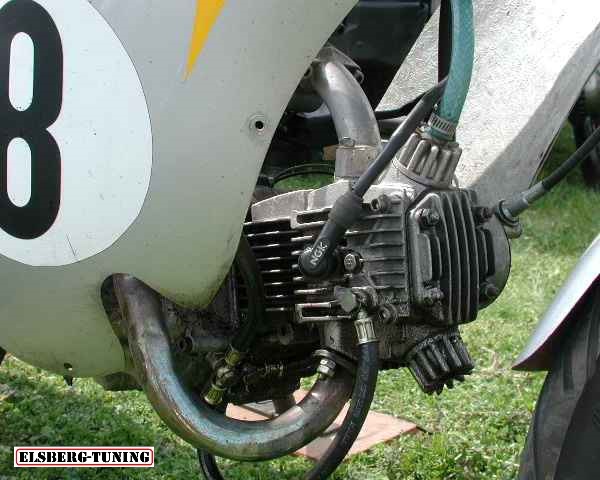

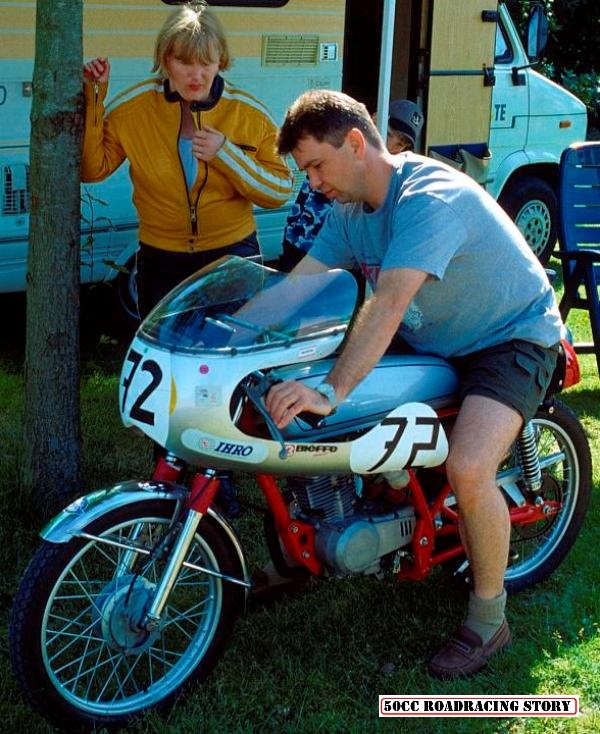

Nijmegen 2003 - SS50 based racer SS50 5- speed engine

The legendary Honda special driven by Mary Branson Mary Branson - winning on the Honda built by John Branson

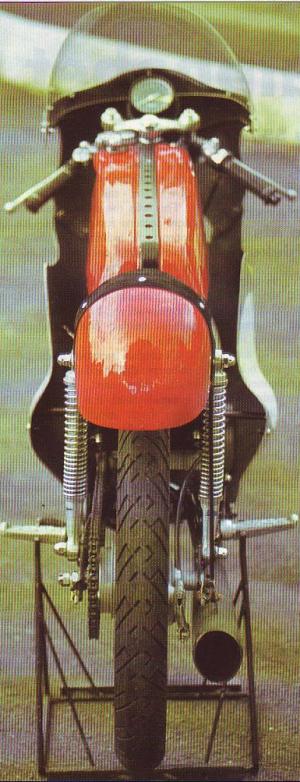

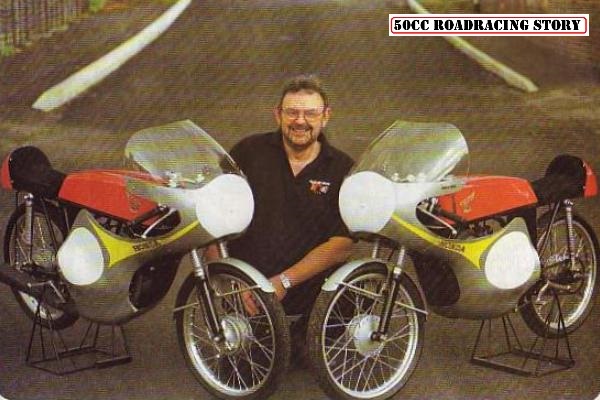

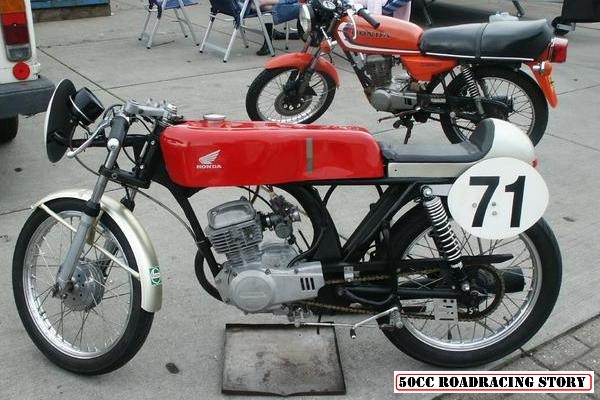

Lovely CB50 racers made by John Loxley Loxley Honda racer

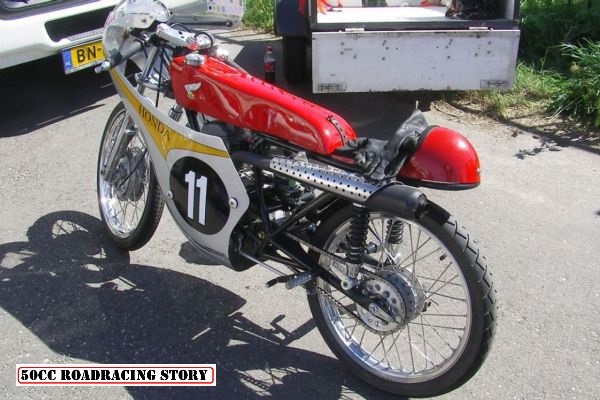

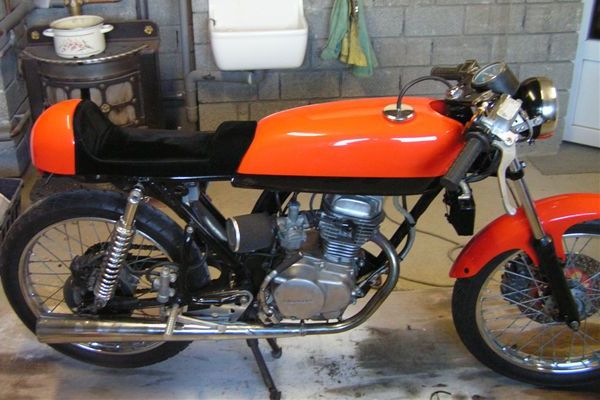

Honda CB50 racer CB50 racer built by Jeffrey Sabbe of Belgium

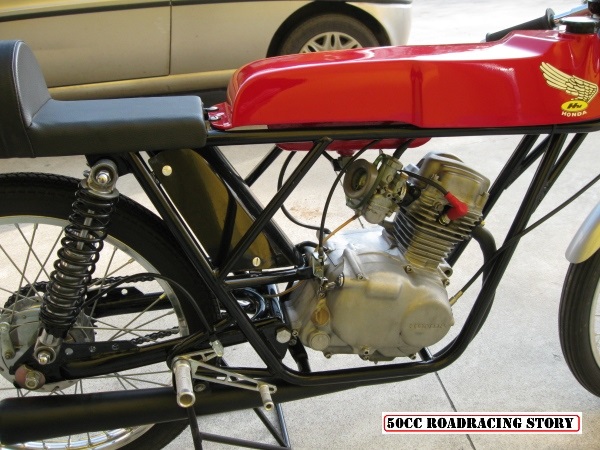

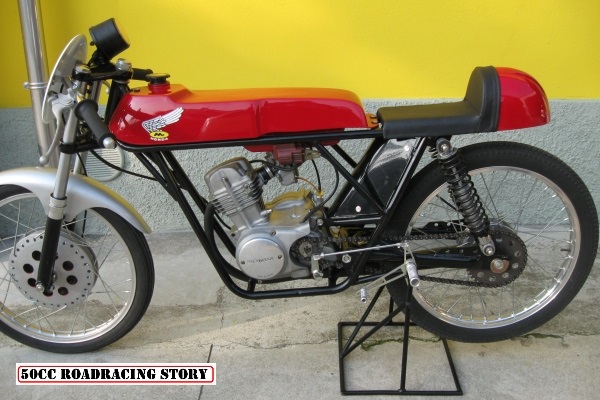

Italian built special - CB50 engine in Colibri frame CB racer

Dutch built CB50 racer with Dream parts

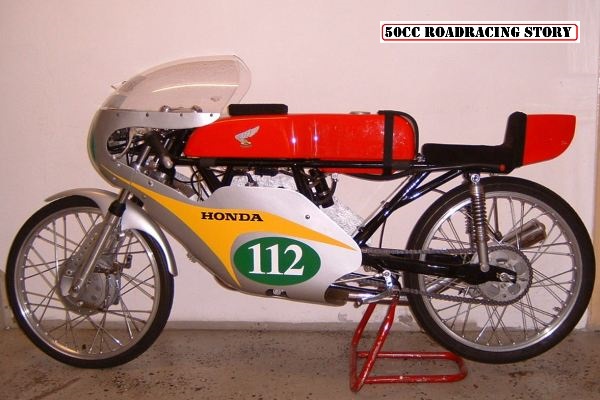

German built special - tube framed SS50 engine

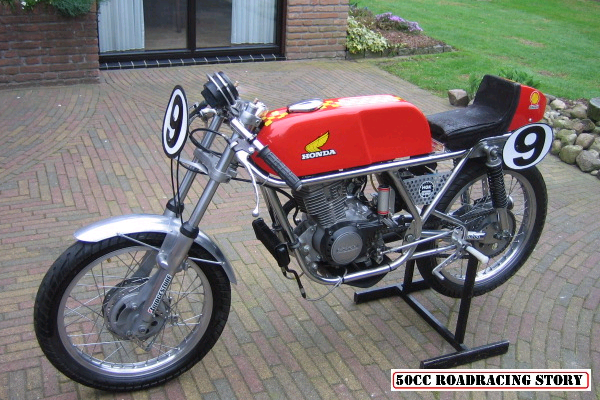

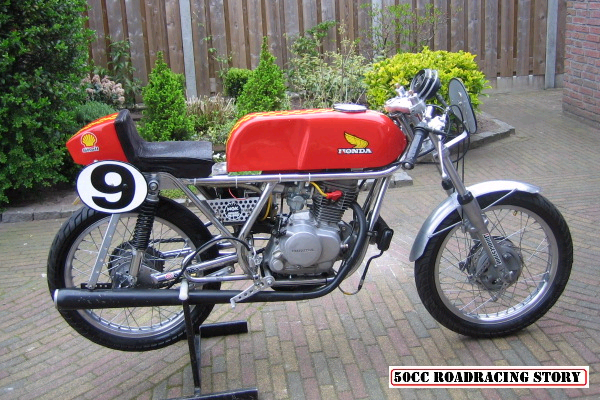

CB50 engine in Jamathi frame - driven by Poul Erik Oversø DK Jamathi moped frame with Honda CB50 engine

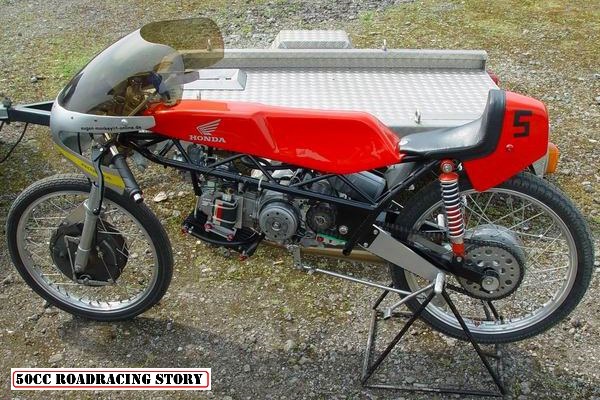

A ZM Honda - built by Peter Müller

Supercharged CD50 engine in tubeframe - built by me! DjurslandRing 2008
